Dormer EX11 snitttappar snúnir

Dormer

Véltappar

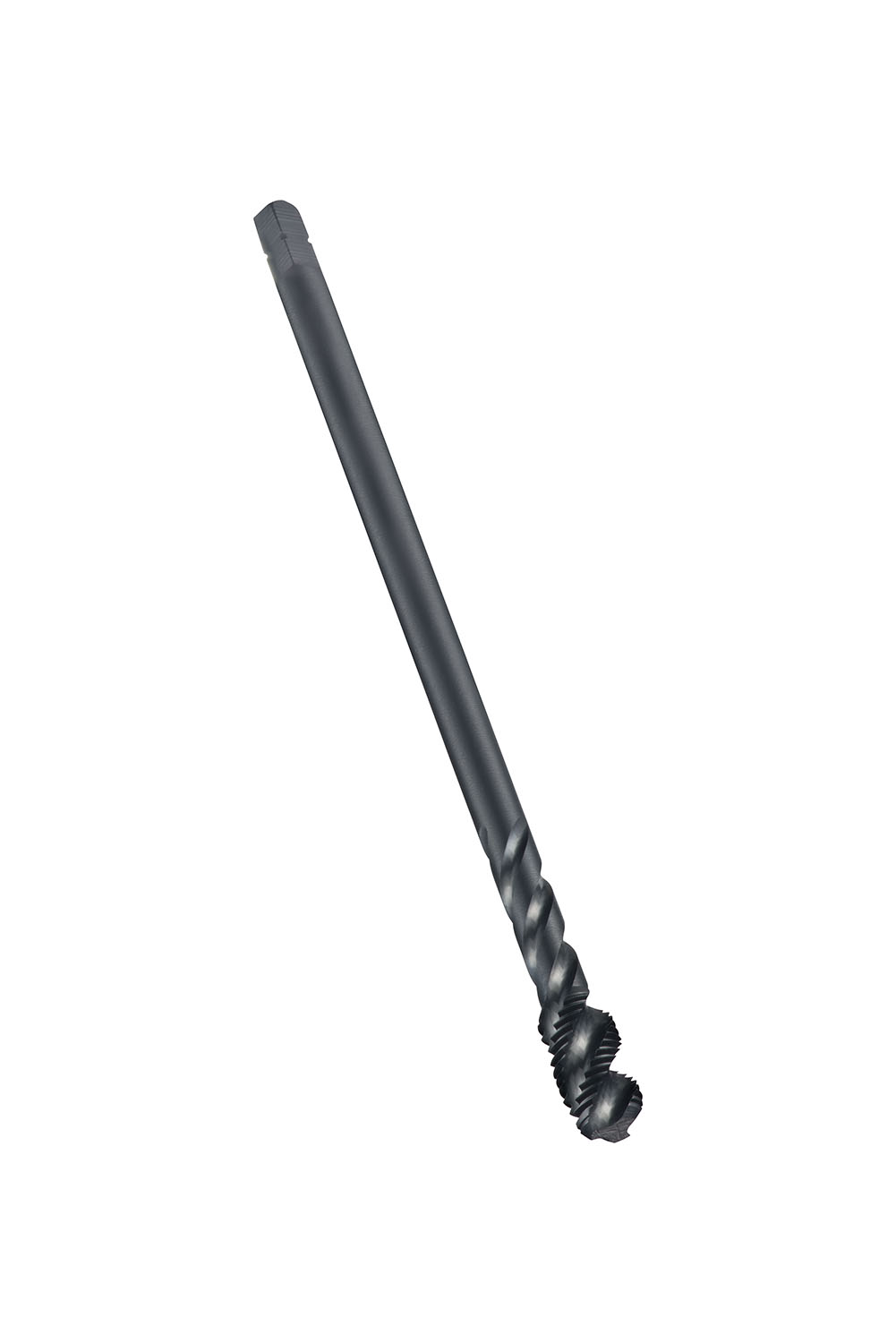

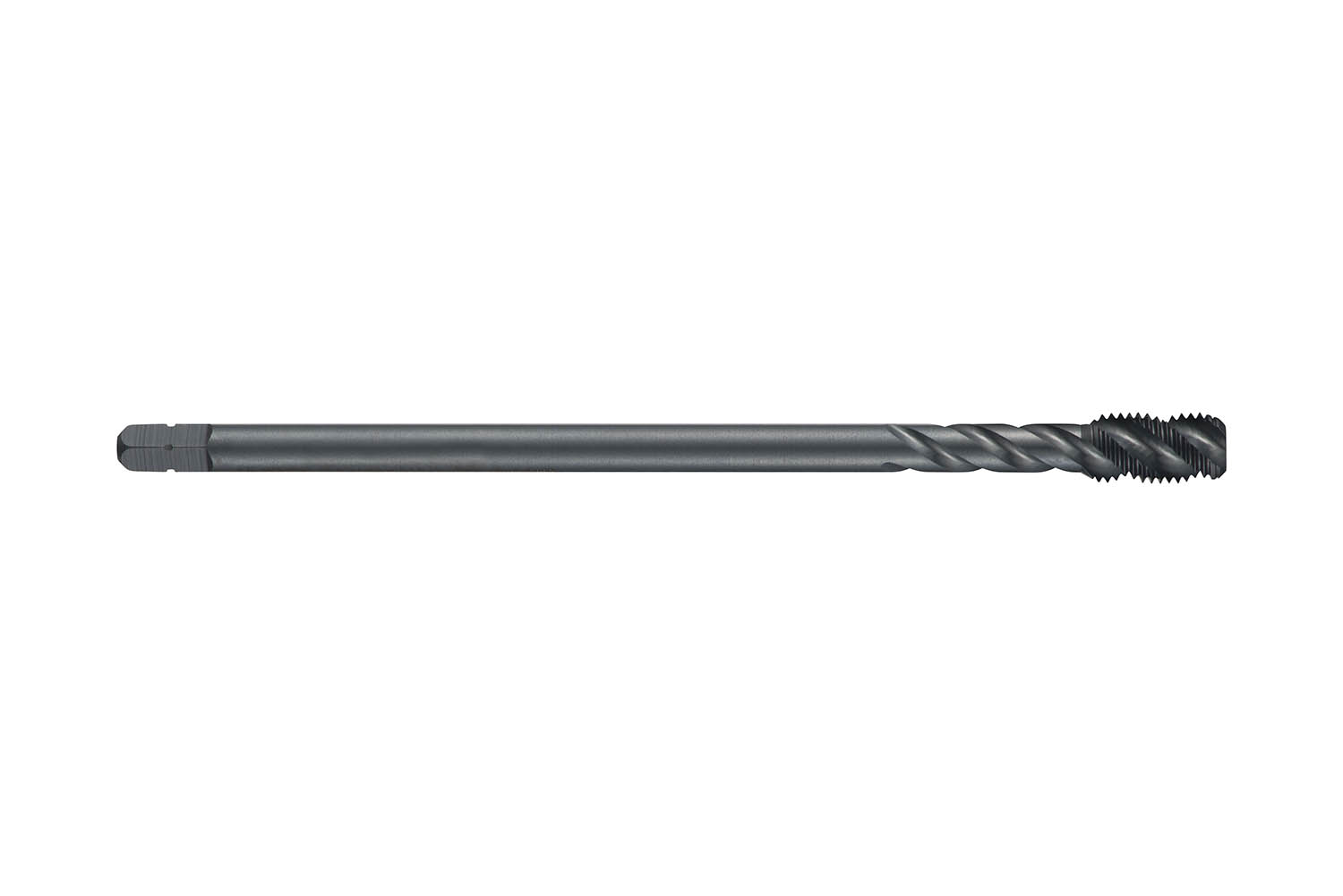

Machine tap with spiral flute suited for blind holes. Steam tempered surface acts to retain cutting fluid and prevent chip to tool welding. The reduced shank increases the reach of the tap.
Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M8 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Dormer EX11 Snitttappi M8x1 Snúinn, fínt snitti

Machine tap with spiral flute suited for blind holes. Steam tempered surface acts to retain cutting fluid and prevent chip to tool welding. The reduced shank increases the reach of the tap.
Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M10 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 7.0mm shank and 5.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Dormer EX11 Snitttappi M10X1 Snúinn, fínt snitti

Machine tap with spiral flute suited for blind holes. Steam tempered surface acts to retain cutting fluid and prevent chip to tool welding. The reduced shank increases the reach of the tap.
Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M10 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 7.0mm shank and 5.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Dormer EX11 Snitttappi M10x1.25 Snúinn, fínt snitti

Machine tap with spiral flute suited for blind holes. Steam tempered surface acts to retain cutting fluid and prevent chip to tool welding. The reduced shank increases the reach of the tap.
Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M12 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 9.0mm shank and 7.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Dormer EX11 Snitttappi M12x1.25 Snúinn, fínt snitti

Machine tap with spiral flute suited for blind holes. Steam tempered surface acts to retain cutting fluid and prevent chip to tool welding. The reduced shank increases the reach of the tap.
Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M12 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 9.0mm shank and 7.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Dormer EX11 Snitttappi M12x1.5 Snúinn, fínt snitti

Machine tap with spiral flute suited for blind holes. Steam tempered surface acts to retain cutting fluid and prevent chip to tool welding. The reduced shank increases the reach of the tap.
Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M20 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 16.0mm shank and 12.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Dormer EX11 Snitttappi M20x1.5 Snúinn, fínt snitti

Machine tap with spiral flute suited for blind holes. Steam tempered surface acts to retain cutting fluid and prevent chip to tool welding. The reduced shank increases the reach of the tap.
Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M14 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 11.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Dormer EX11 Snitttappi M14x1.0 Snúinn, fínt snitti

Machine tap with spiral flute suited for blind holes. Steam tempered surface acts to retain cutting fluid and prevent chip to tool welding. The reduced shank increases the reach of the tap.
Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M14 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 11.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Dormer EX11 Snitttappi M14x1.25 Snúinn, fínt snitti

Machine tap with spiral flute suited for blind holes. Steam tempered surface acts to retain cutting fluid and prevent chip to tool welding. The reduced shank increases the reach of the tap.
Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M16 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 12.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Dormer EX11 Snitttappi M16x1.0 Snúinn, fínt snitti

Machine tap with spiral flute suited for blind holes. Steam tempered surface acts to retain cutting fluid and prevent chip to tool welding. The reduced shank increases the reach of the tap.
Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M16 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 12.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Dormer EX11 snitttappar snúnir
