Dormer E474 Snittappar

Dormer

Véltappar

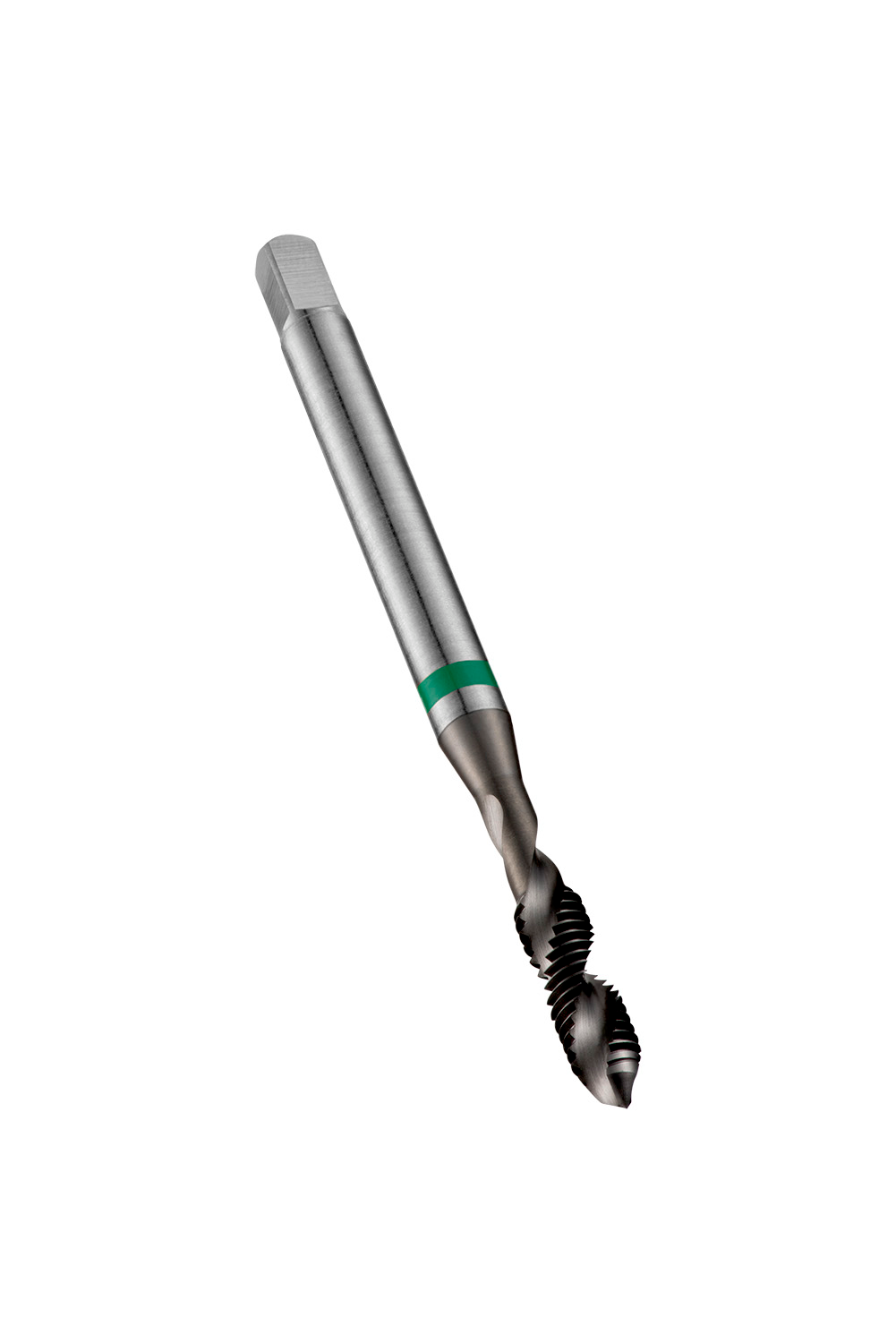

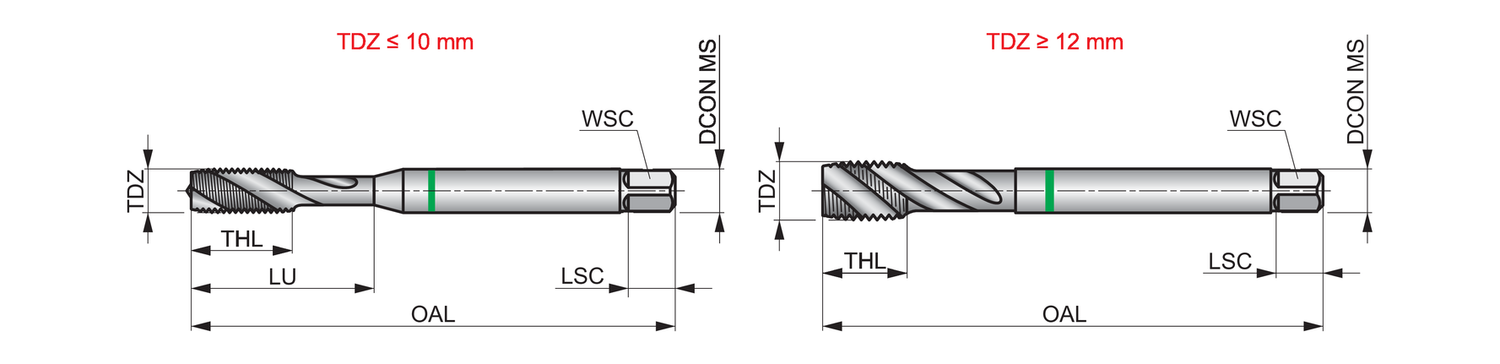

Spiral flute tap Green Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with Super-B coating and 35° helix angle for 2.5xD blind hole threading in cast aluminium

Dormer E474 Snittappi M6

Spiral flute tap Green Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0mm shank and 6.2mm square drive, powder metallurgical HSS-E with Super-B coating and 35° helix angle for 2.5xD blind hole threading in cast aluminium

Dormer E474 Snittappi M8

Spiral flute tap Green Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0mm shank and 8.0mm square drive, powder metallurgical HSS-E with Super-B coating and 35° helix angle for 2.5xD blind hole threading in cast aluminium

Dormer E474 Snittappi M10

Spiral flute tap Green Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 9.0mm shank and 7.0mm square drive, powder metallurgical HSS-E with Super-B coating and 35° helix angle for 2.5xD blind hole threading in cast aluminium

Dormer E474 Snittappar
