Dormer E422 snitttappar

Dormer

Véltappar

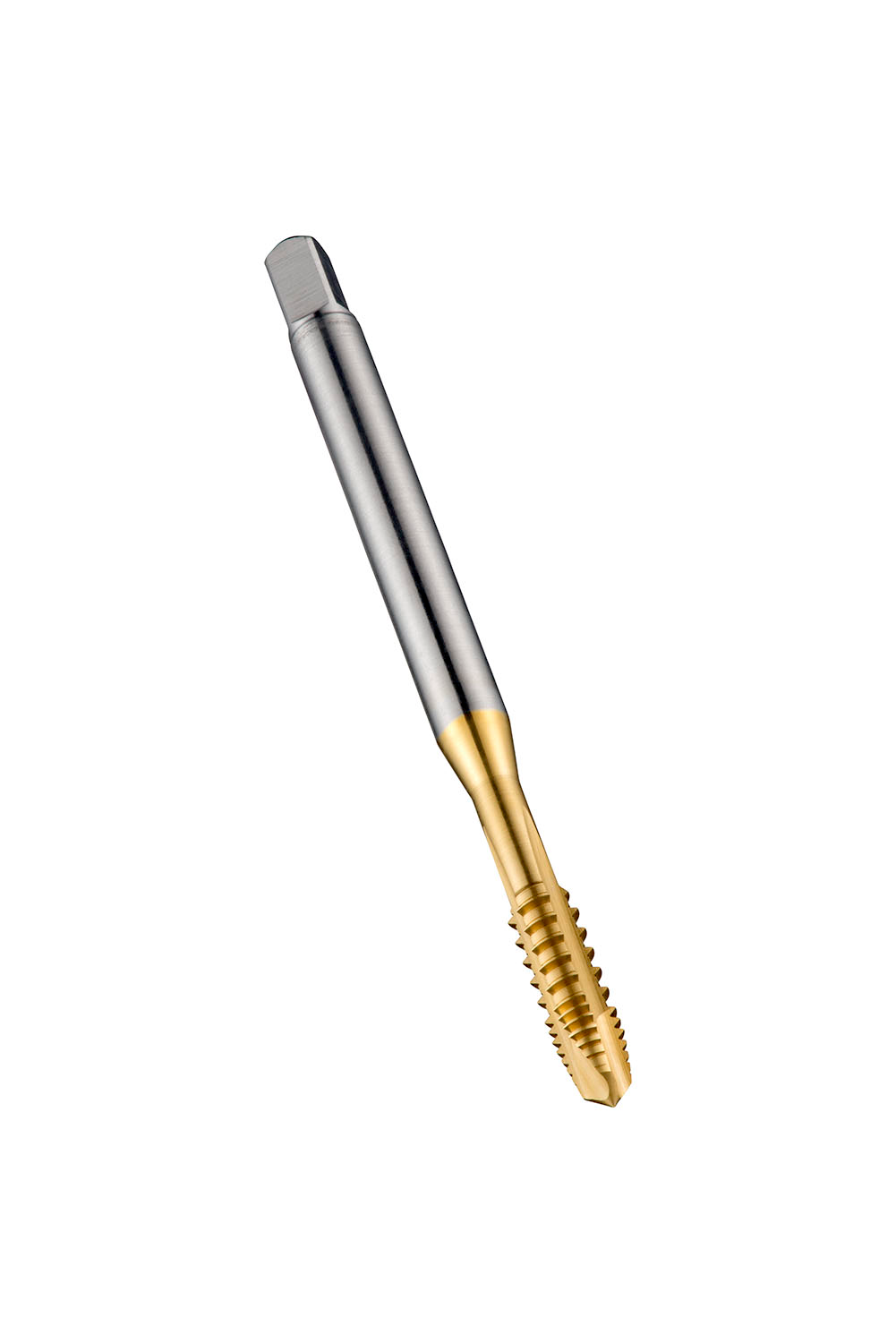

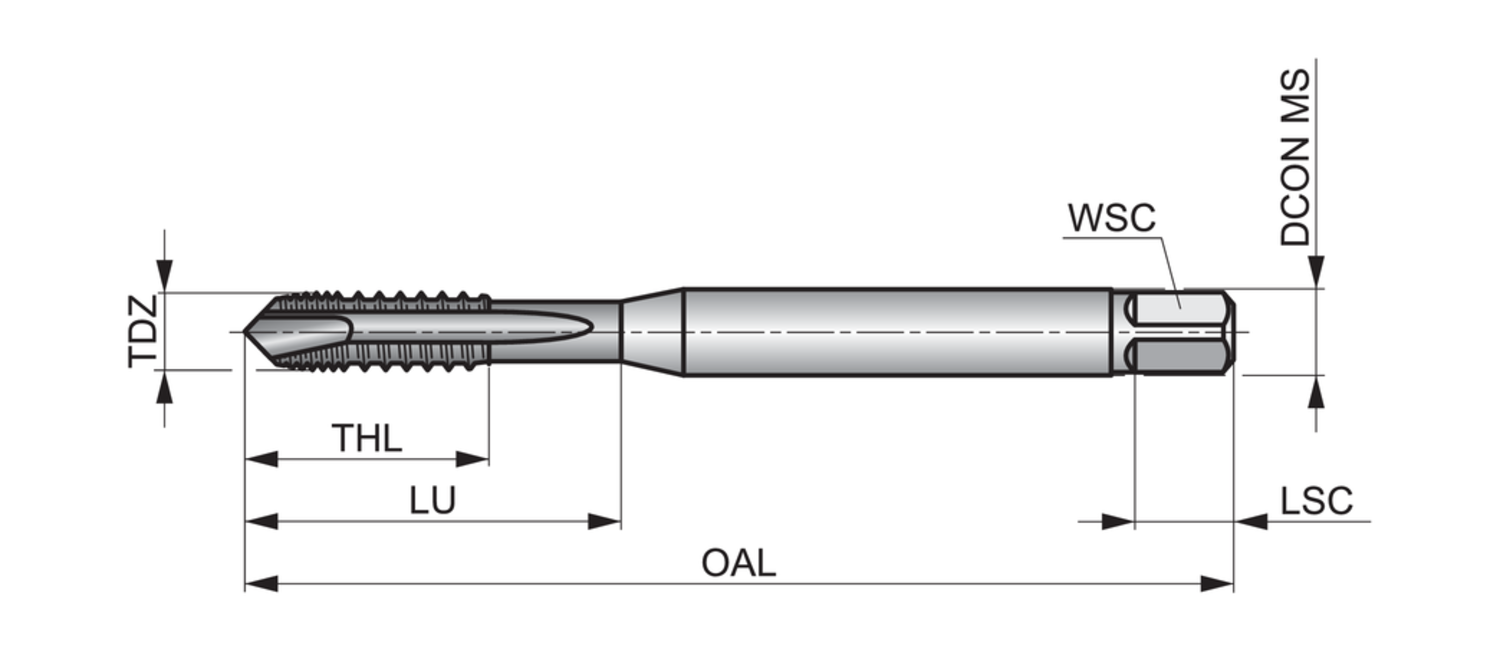

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 3.5mm shank and 2.7mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys

Dormer E422 snitttappi M3

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.5mm shank and 3.4mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys

Dormer E422 Snittappi M4

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys

Dormer E422 Snittappi M5

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys

Dormer E422 Snittappi M6

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0mm shank and 6.2mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys

Dormer E422 Snittappi M8

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0mm shank and 8.0mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys

Dormer E422 snitttappar
