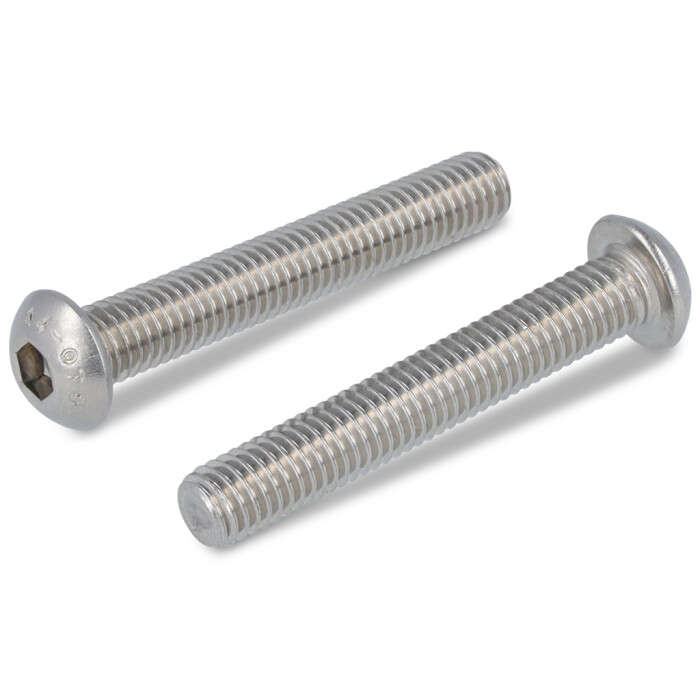

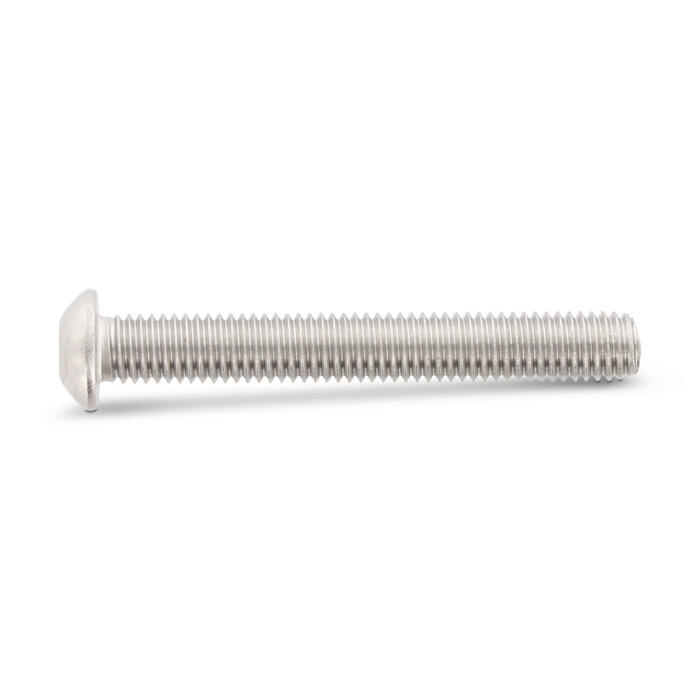

A4 Buttonhead skrúfur M4x16 ISO7380

Technical data

• Diameter (d) 4 mm
• Total length (l) 16 mm
• Type of thread Metric
• Head shape pan head
• Diameter of head (dk) 7,60 mm
• Height of head (k) 2,20 mm
• Drive size (Antrieb) SW 2,5
• Drive shape (Antr.-Form) Hexagonal socket
• strength class (Rm) 500 N/mm²
• Measurement t (t) 1,30 mm
