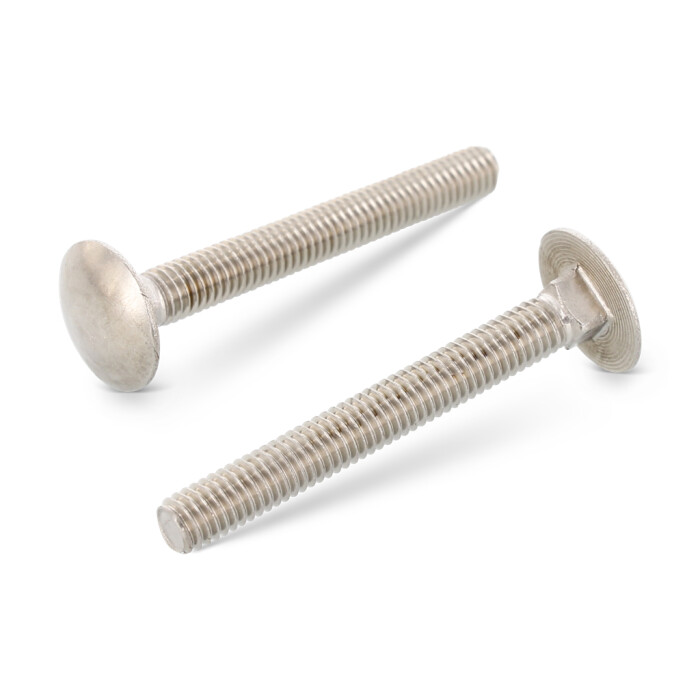

A4 Borðaboltar M8x50/50 DIN603

Technical data

• Diameter (d) 8 mm
• Total length (l) 50 mm
• Type of thread Metric
• Head shape button head
• Height of head (k) 4,88 mm
• strength class (Rm) 700 N/mm²
• Diameter of head (dk) 20,65 mm
• Measurement v (v) 8,58 mm
• Square height (f) 5,60 mm
