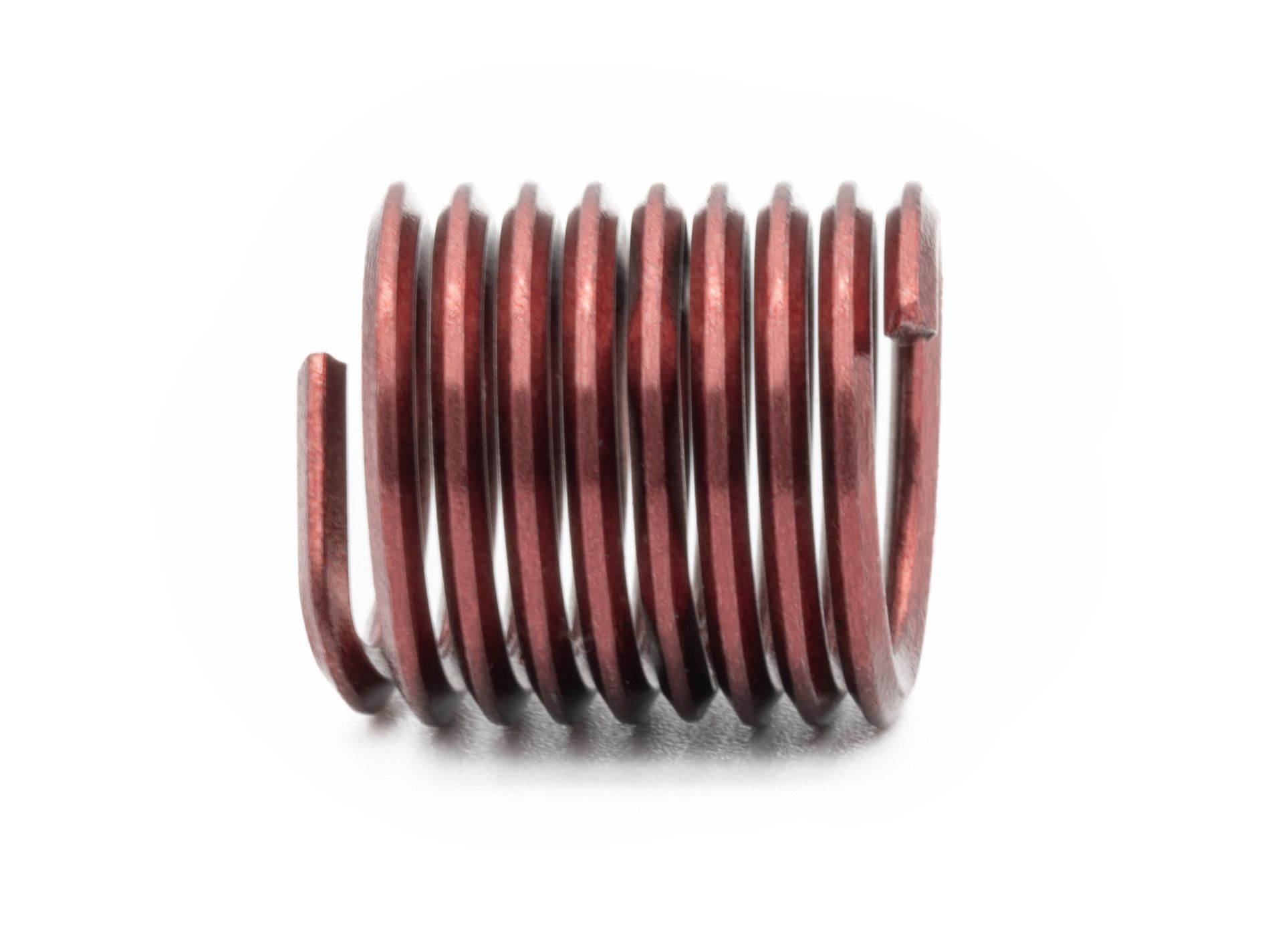

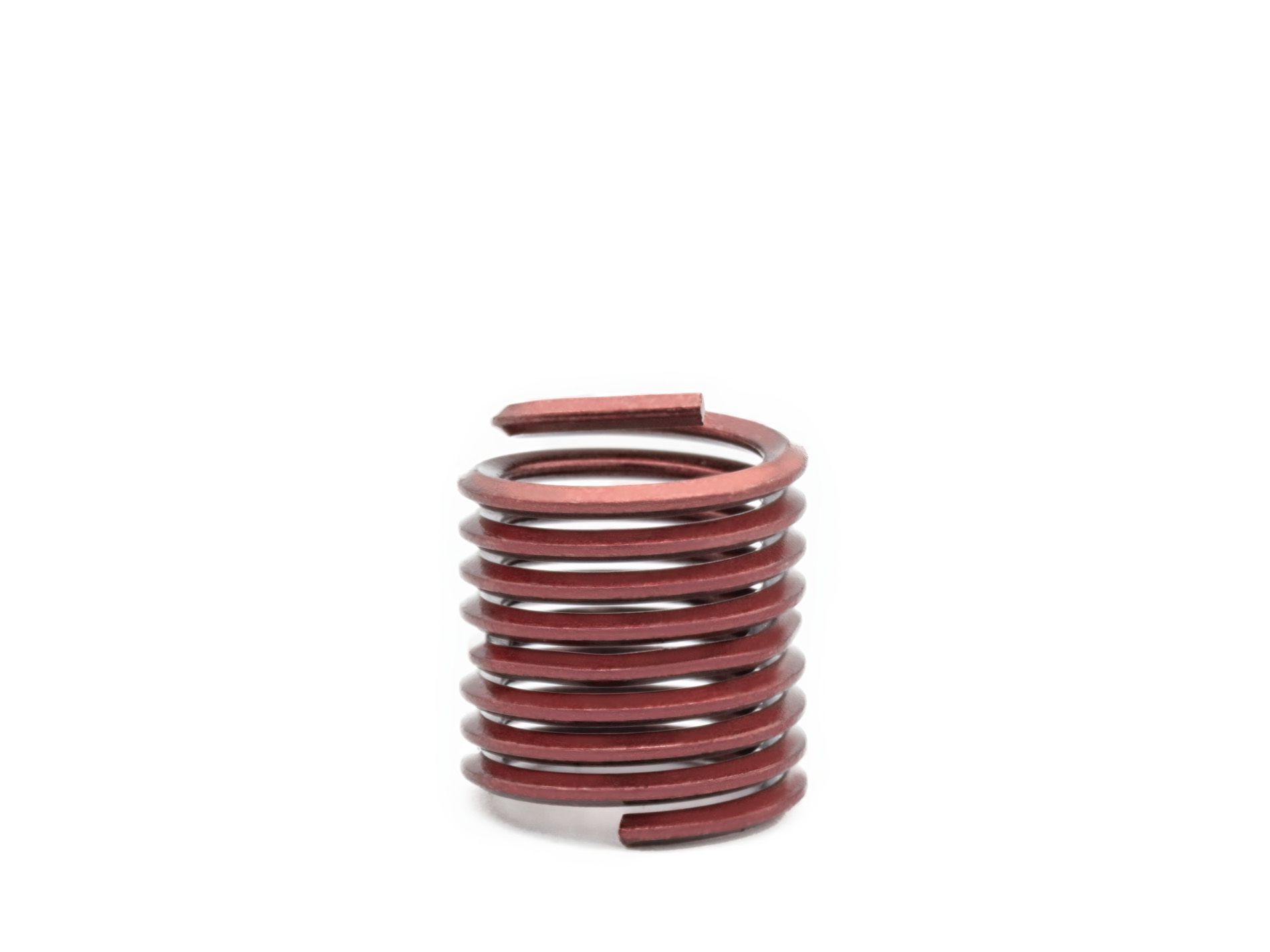

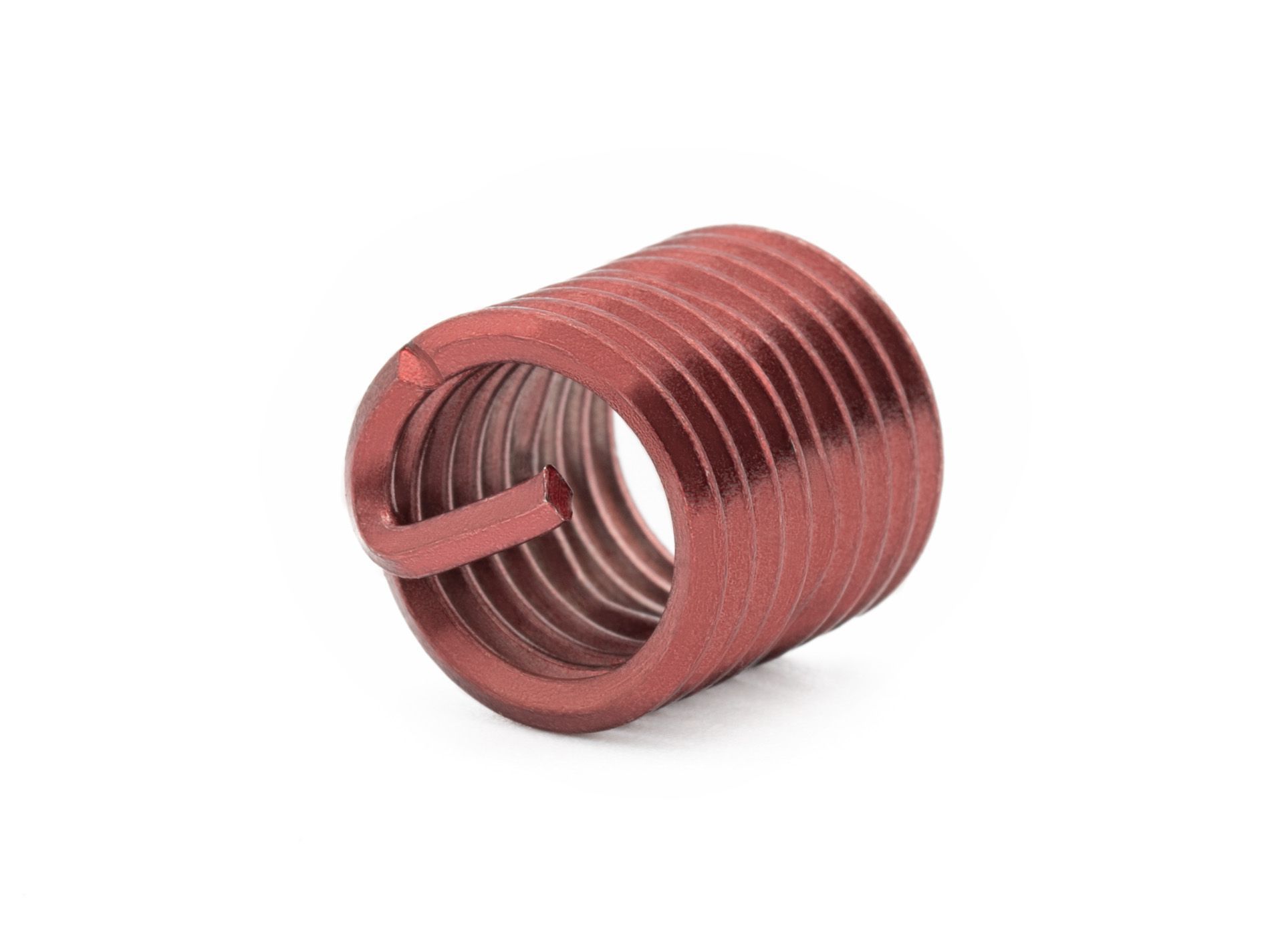

Baer Viðgerðargengjur A2 M12x1.25 L=1.5 D - Screw Grip

BaerCoil® screw-locking thread inserts | type "screw grip " - All advantages at a glance

With the self-clamping "screw grip" threaded inserts, your construction remains stable - regardless of shocks, constant vibrations or movements. The screw-locking BaerCoil® thread inserts complement the properties of the "free running" connection and have a clamping effect on the flanks of the screwed-in screw due to their polygonally shaped windings. Please use only screws of a higher strength class for this purpose, as an elastically resilient frictional connection is created. The clamping torques are comparable with the specifications in DIN 267 Part 15 and ISO 2320. Please note that special insertion tools with reduced diameters are required for screw grip inserts.

BaerCoil® thread inserts can be shortened if necessary, according to the required length, with a side cutter or similar. It should be noted that the thread inserts with screw locking have a polygonal winding approximately in the middle of the insert. This must not be removed when shortening in order to maintain the screw locking effect.
