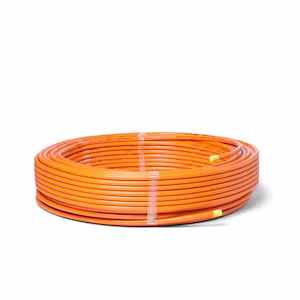

VarioProFile pipe 11.6x1.5 500m

The VarioProFile pipe uses the advantages of both aluminium and plastic. It combines five interconnected layers. That guarantees a slightly flexible yet dimensionally stable pipe.

The innermost layer is made of polyethylene and extremely temperature resistant. The inner surface is smooth as glass, making it impossible for deposits to form. The water flows through the pipe without resistance and with minimal pressure losses.

The profiled surface structure increases the outermost layer of the pipe by up to 15%. The larger surface means optimised heat transfer.

100% oxygen diffusion-tight thanks to the laser-welded aluminium pipe: The metal prevents oxygen penetration. That virtually rules out potential silting.

Construction VarioProFile-pipe 11,6x1,5

1 Raised-temperature-resistance polyethylene (PE-RT) with profiled surface structure

2 Adhesive layer

3 Homogeneous laser-welded solid aluminium pipe

4 Adhesive layer

5 Raised-temperature-resistance polyethylene (PE-RT)

Advantages

Fully corrosion-free

Optimum creep behaviour

Just as light as a plastic pipe

10-year guarantee with certificate

Profiled surface for optimised heat transfer (10% larger surface)

Flexible, easy to bend, extremely good hydrostatic stability

Resistant to hot water additives (inhibitors, antifreeze)

Mirror-smooth inner surface – less pressure loss – no encrustation

High pressure and temperature resistance (10 bar, +95 °C)

100% oxygen diffusion-tight

Lower linear coefficient of expansion, lower heat expansion forces

Tested as per EN 21 003 (IMA Dresden), SKZ A 397
