Most versatile compact machine on the market
With a 140mm stroke, maximum cutter length of 110mm and seamless integration with the VersaDrive modular cutting system, it offers the most flexibility of any compact Magnet Drill on the market.

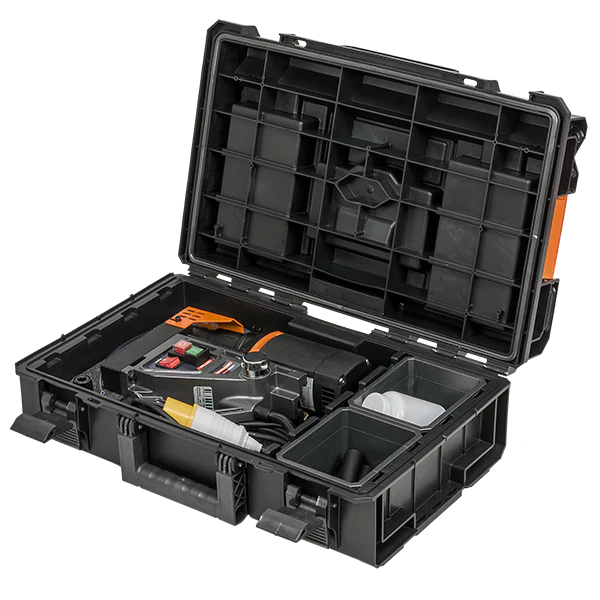

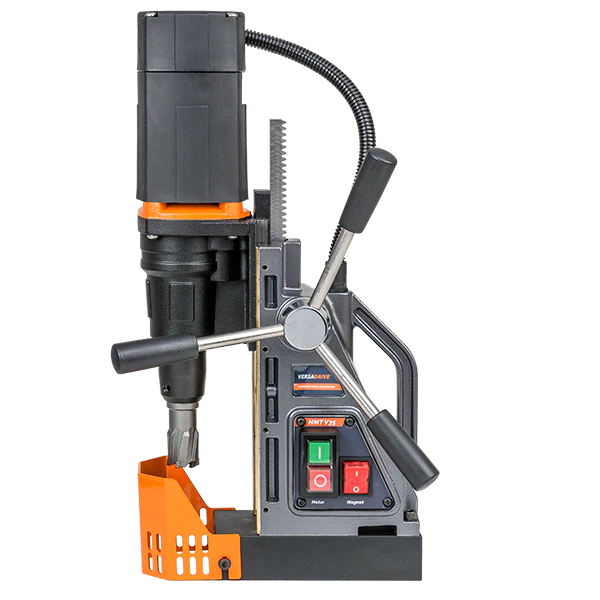

Supplied with handles, heavy duty metal guard system, VersaDrive Rapid-Lock adapter, STAKIT Base 200 Case and gravity fed coolant system.
Technical Specification
<ul>
<li>Cutter size range 12 - 35mm TCT</li>
<li>Max cutter capacity	35mm TCT</li>
<li>Max cutter length 110mm</li>
<li>Twist drill capacity 12mm</li>
<li>Max tap capacity N/A</li>
<li>Max countersinking 25mm</li>
<li>Length 220mm</li>
<li>Width (inc handles)173mm</li>
<li>Height (min-max) 305-445mm</li>
<li>Stroke 140mm</li>
<li>Weight 9.5 kg</li>
<li>Magnet (LxW) 160x80mm</li>
<li>Magnetic adhesion 1000kgs</li>
<li>Motor power 850w</li>
<li>Total power 900w</li>
<li>Speed RPM (No Load) 750 min</li>
<li>Spindle 3/4" Weldon</li>
<li>Arbor Integral ¾ Weldon</li>
<li>Coolant system Gravity Oil Fed</li>
<li>Warranty 2 Year (When registered)</li>
</ul>

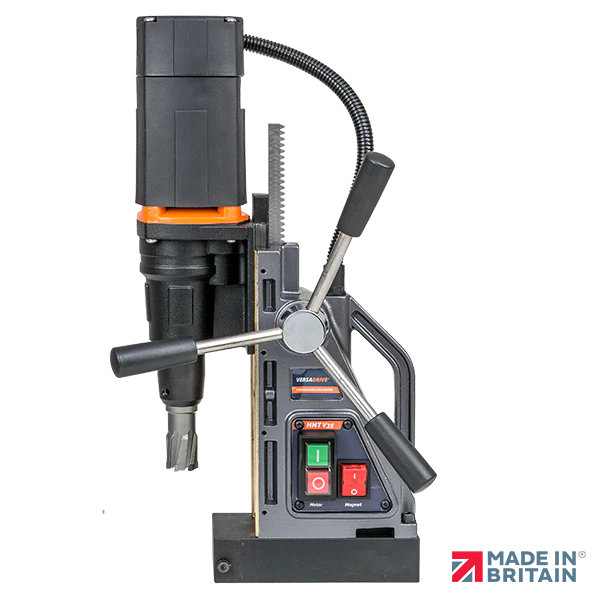

HMT VersaDrive V35 Segulborvél 12-35mm TCT
