Facom JET.C4NM4A Verkfærakista

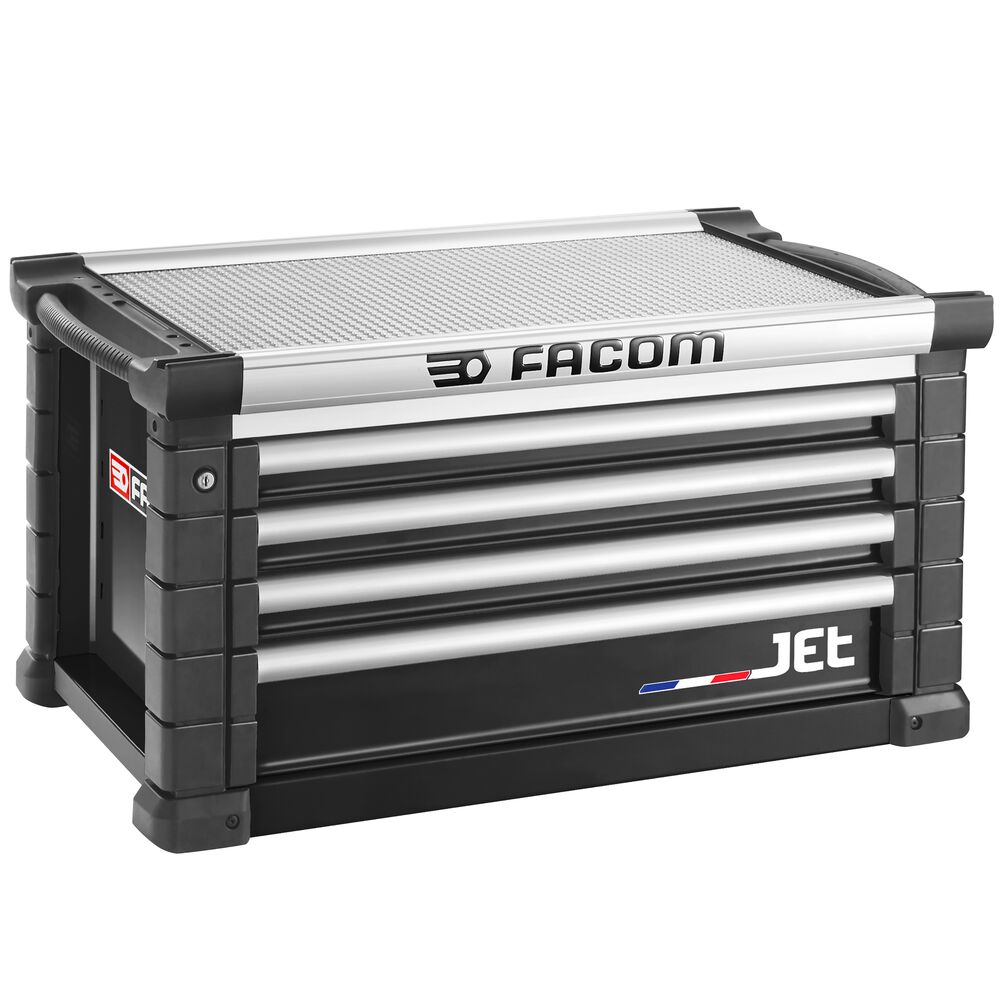

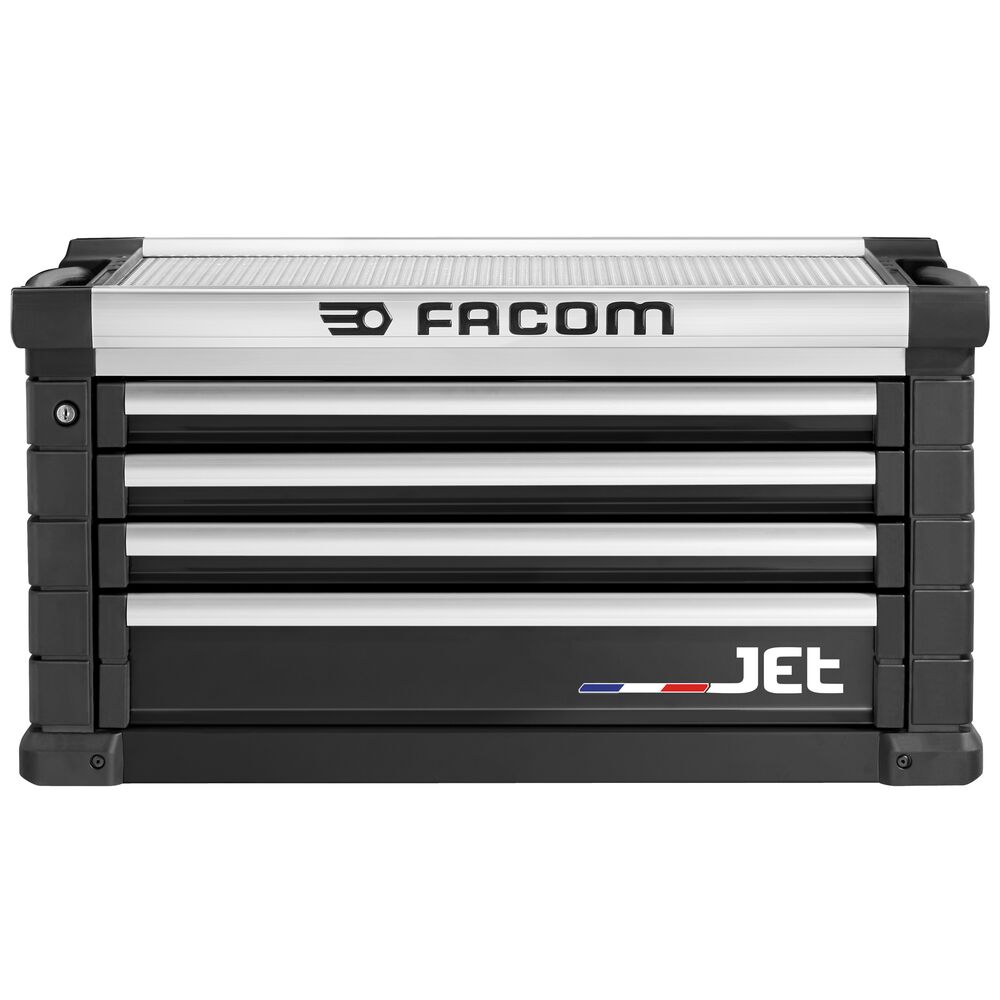

JET 4-DRAWER CHEST - 4 MODULES PER DRAWER

4 drawers chest = 16 modules distributed in the 60 and 130 mm drawers.

3 drawers height 60 mm = 12 modules.

1 drawer height 130 mm = 4 modules.

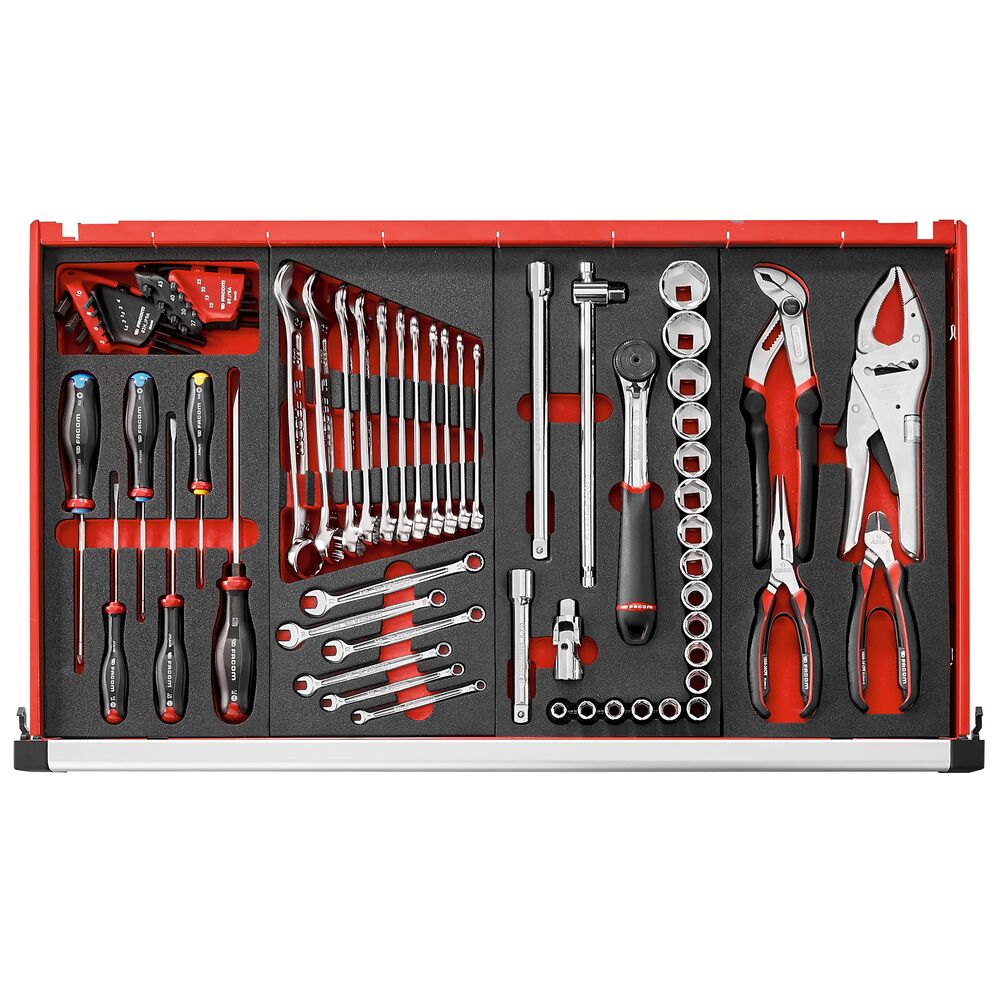

Drawers can be fitted with thermos aped or foam modules from Facom Modular system program.

Load resistance per drawer: 25/30kg.

Equipped with ball bearing slides, total extension with "self close" return spring for an efficient and secure closure.

100% opening drawers for optimum ease of use.

Total load in the drawers: 105 kg.

Total storage capacity: 100 litres.

Drawers useful dimensions (L. x D. x H.) : 759 x 421 x 60 / 130 mm.

Can be fitted with the JET2.15 and JET2.16 removable partitions - not supplied.

To be used alone or together with a JET.M4A rolling cabinet.

Supplied with the link kit for easy and secured mounting of the assembly.

Can be turned in a mobile version with the wheel set JET.C4MOBILEKIT (handle + 4 wheels).

Worktop :

Extra large worksurface : +25% vs JET+. Useful dimension 797 x 461 mm. 0,37m2.

High resistance : a 2 mm aluminium plate -rice grain finish- covers a 15 mm wooden board.

The end caps are made of impact-resistant polypropylene.

The worktop can receive a vice and is resistant to impacts and hydrocarbons and a static load of 600kg.

Even more functional : integrated bi-material handles with soft coating on each side of the cabinet.

One for moving and one to lift the roller cabinet and ride over obstacles.

Innovation: the aluminium rails of the worktop have been designed as an integrated hanging system for accessories.

The installation of accessories is fast and secure.

A wide range of accessories is available and will allow you to customize your roller cabinet according to your needs to make it a real workstation.

Dedicated slots for 8 screwdrivers.

Built-in edges prevent tools from falling on the move.

Drawers :

Ergonomics and Safety :

Exclusive FACOM design ensuring easy grip. Lifting handpulls made of anodized aluminium with safety hook avoiding any opening while .

Premium self-closing system ensures secure closure and further safety.

Centralized locking system, delivered with 2 keys, one folding.

With new soft bumpers in elastomeric thermoplastic with damper effect shock: on the 4 angles and on drawers protecting the safety hook.

Accessories:

Worktop and sides can receive numerous accessories from the most basic to the most sophisticated ones.

Warranty:

The FACOM JET series is made in France to the highest specifications and manufacturing standards.

Each model is thoroughly tested to assess and validate its performance and comes with a five year manufacturer’s warranty.

The drawers are tested over 50 000 opening / closing cycles, i.e. 10 years of use.JET.M3A CHEST - 4 DRAWERS - 3 MODULES PER DRAWER

4 drawers chest = 12 modules distributed in the 60 and 130 mm drawers.

3 drawers height 60 mm = 9 modules.

1 drawer height 130 mm = 3 modules.

Drawers can be fitted with thermos aped or foam modules from Facom Modular system program.

Load resistance per drawer: 20/25kg.

Equipped with ball bearing slides, total extension with "self close" return spring for an efficient and secure closure.

100% opening drawers for optimum ease of use.

Total load in the drawers: 85 kg.

Total storage capacity: 75 litres.

Drawers useful dimensions (L. x D. x H.) : 569 x 421 x 60 / 130 mm.

Can be fitted with the JET2.15 and JET2.16 removable partitions - not supplied.

To be used alone or together with a JET.M3A rolling cabinet or a JET.CR4M3A mobile chest.

Supplied with the link kit for easy and secured mounting of the assembly.

Can be turned in a mobile version with the wheel set JET.C4MOBILEKIT (handle + 4 wheels).

Worktop :

Extra large worksurface : +25% vs JET+. Useful dimension 605 x461 mm. 0.28m2.

High resistance : a 2 mm aluminium plate -rice grain finish- covers a 15 mm wooden board.

The end caps are made of impact-resistant polypropylene.

The worktop can receive a vice and is resistant to impacts and hydrocarbons and a static load of 500kg.

Even more functional : integrated bi-material handles with soft coating on each side of the cabinet.

One for moving and one to lift the roller cabinet and ride over obstacles.

Innovation: the aluminium rails of the worktop have been designed as an integrated hanging system for accessories.

The installation of accessories is fast and secure.

A wide range of accessories is available and will allow you to customize your roller cabinet according to your needs to make it a real workstation.

Dedicated slots for 8 screwdrivers.

Built-in edges prevent tools from falling on the move.

Drawers :

Ergonomics and Safety :

Exclusive FACOM design ensuring easy grip.

Lifting handpulls made of anodized aluminium with safety hook avoiding any opening while .

Premium self-closing system ensures secure closure and further safety.

Centralized locking system, delivered with 2 keys, one folding.

With new soft bumpers in elastomeric thermoplastic with damper effect shock: on the 4 angles and on drawers protecting the safety hook.

Accessories:

Worktop and sides can receive numerous accessories from the most basic to the most sophisticated ones.

Warranty :

The FACOM JET series is made in France to the highest specifications and manufacturing standards.

Each model is thoroughly tested to assess and validate its performance and comes with a five year manufacturer’s warranty.

The drawers are tested over 50 000 opening / closing cycles, i.e. 10 years of use.
